- Type: indoor
- Brand Name: branches
- Origin: Mainland China
we have 3 kinds of Antenna for you to choose,please read the type details carefully and make a best choice,if you have any question,please contact us,we will try our best to help.
hope you have a good day and perfect shopping experience in our shop!!
TYPE 1 ——5 meter length type
Description:

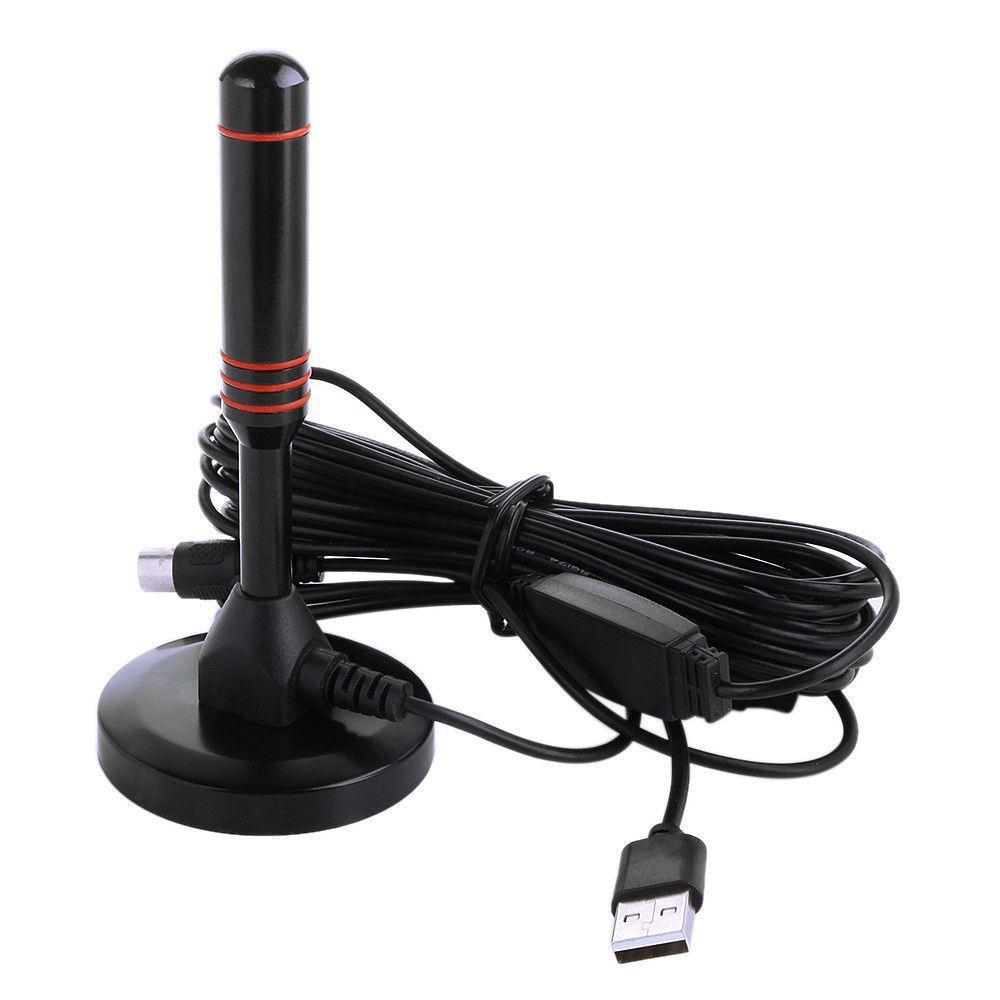

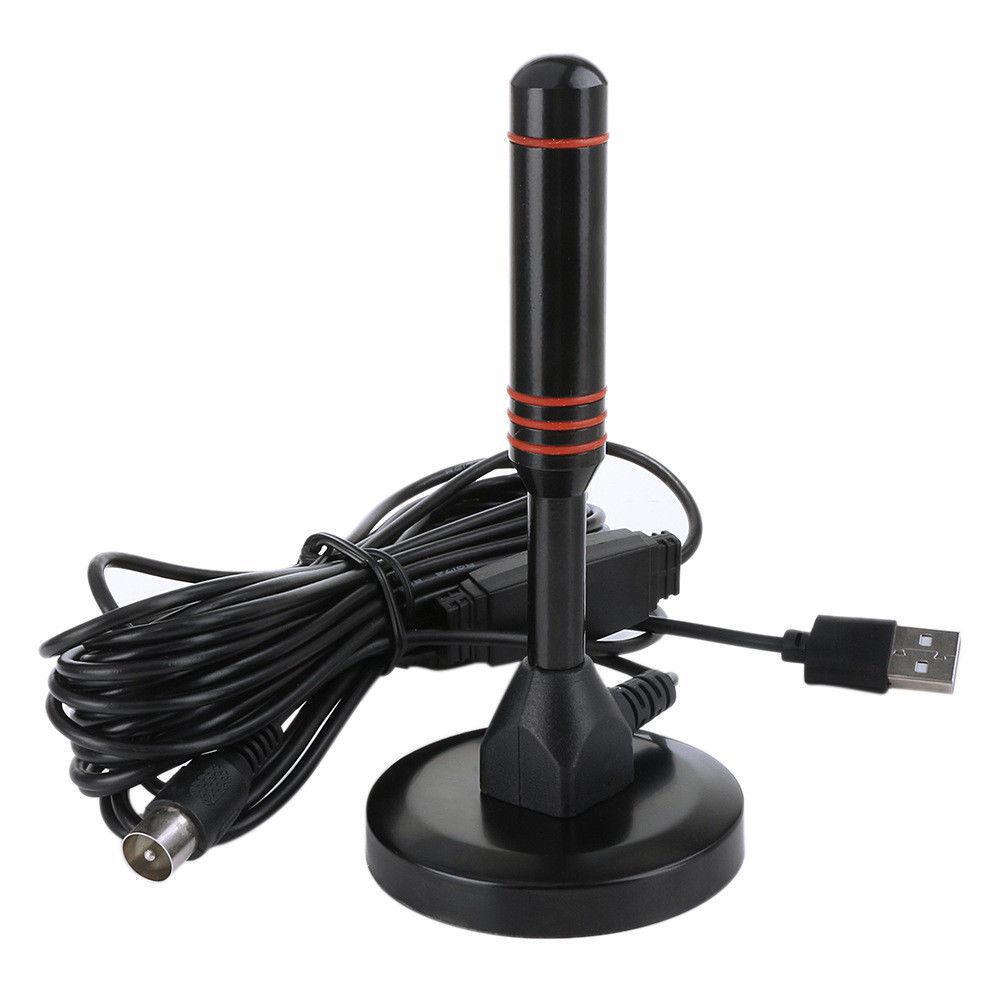

Item type: 200-mile Antenna
Working frequency: VHF (172-240MHz) / UHF (470-860MHz)
Connector: F male
Type: DVB-T2 Antenna
Received signal: ATSC, DVB-T, DVB-T2, ISDB

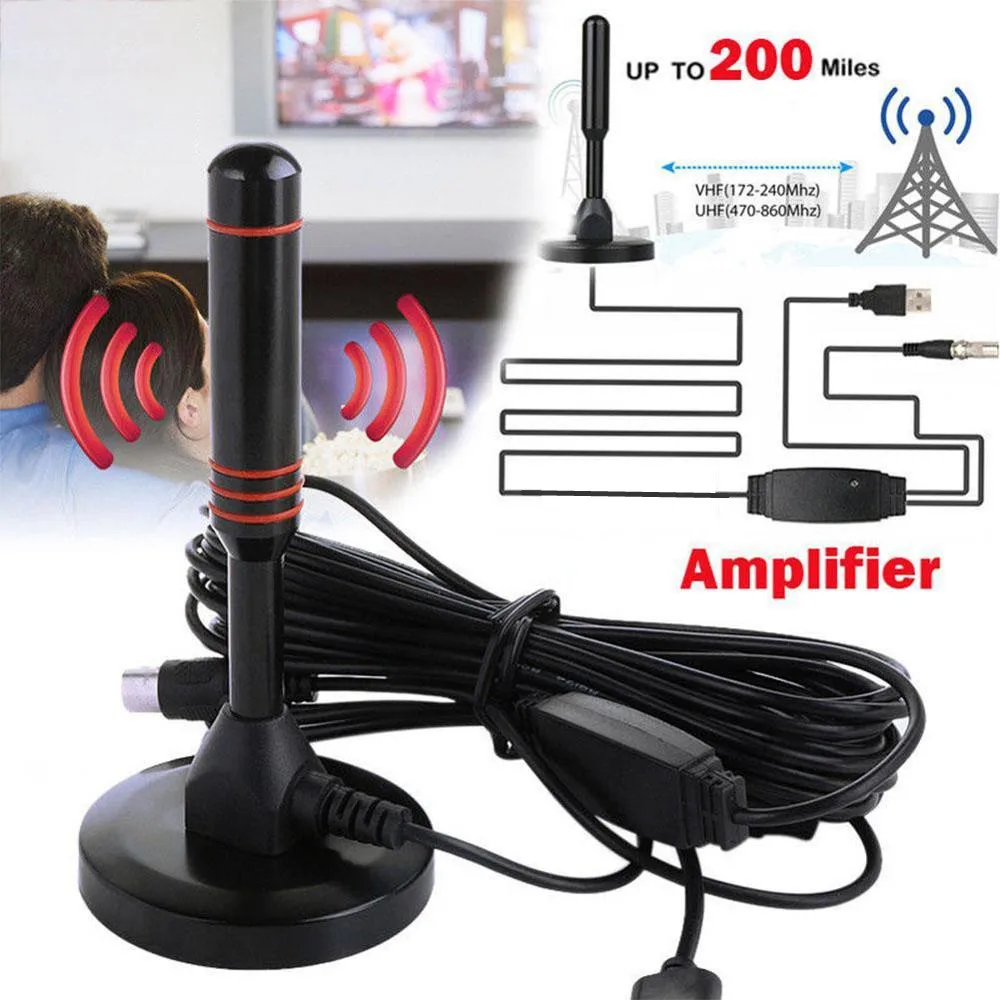

Signal range: 200 miles
Material: Metal
Dimension: 2.44 x 5.12 inch (62 x 130mm)
Current consumption: 20mA
Impedance: 75Ω

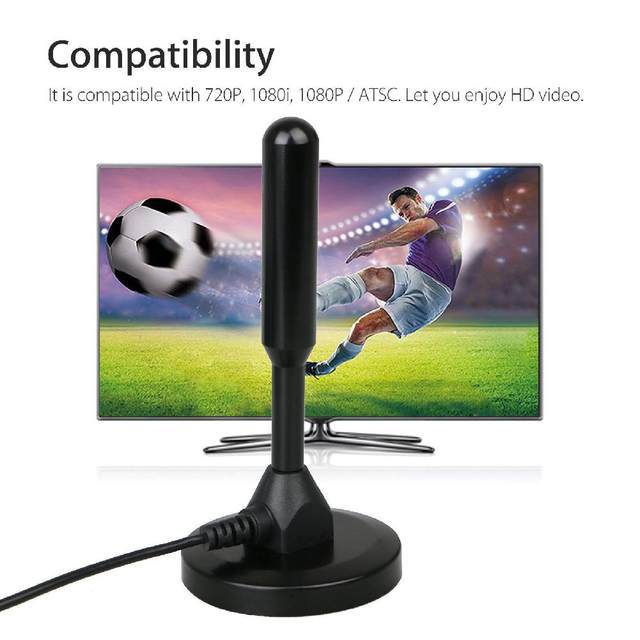

Compatibility: 720p, 1080i, 1080p / ATSC
Storage temperature: -45-85 ℃

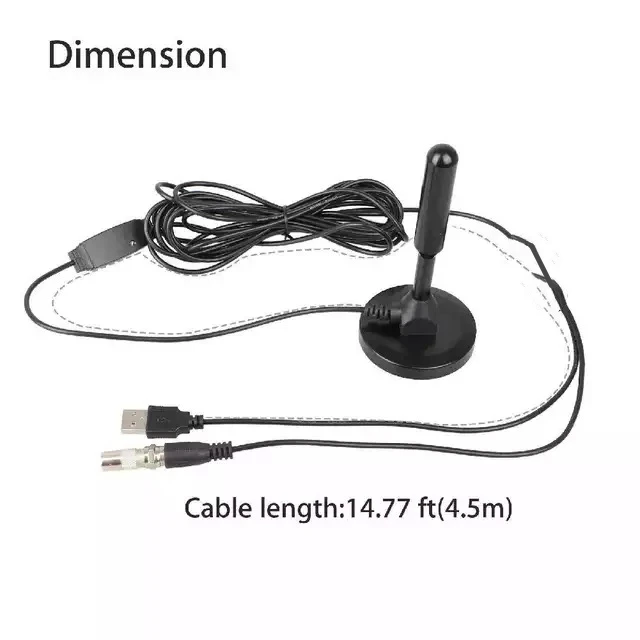

Cable length: approx. 4.5 meters / 14.77ft
Working temperature: -45-85 ℃
Net Weight: 7.6 oz (216g)

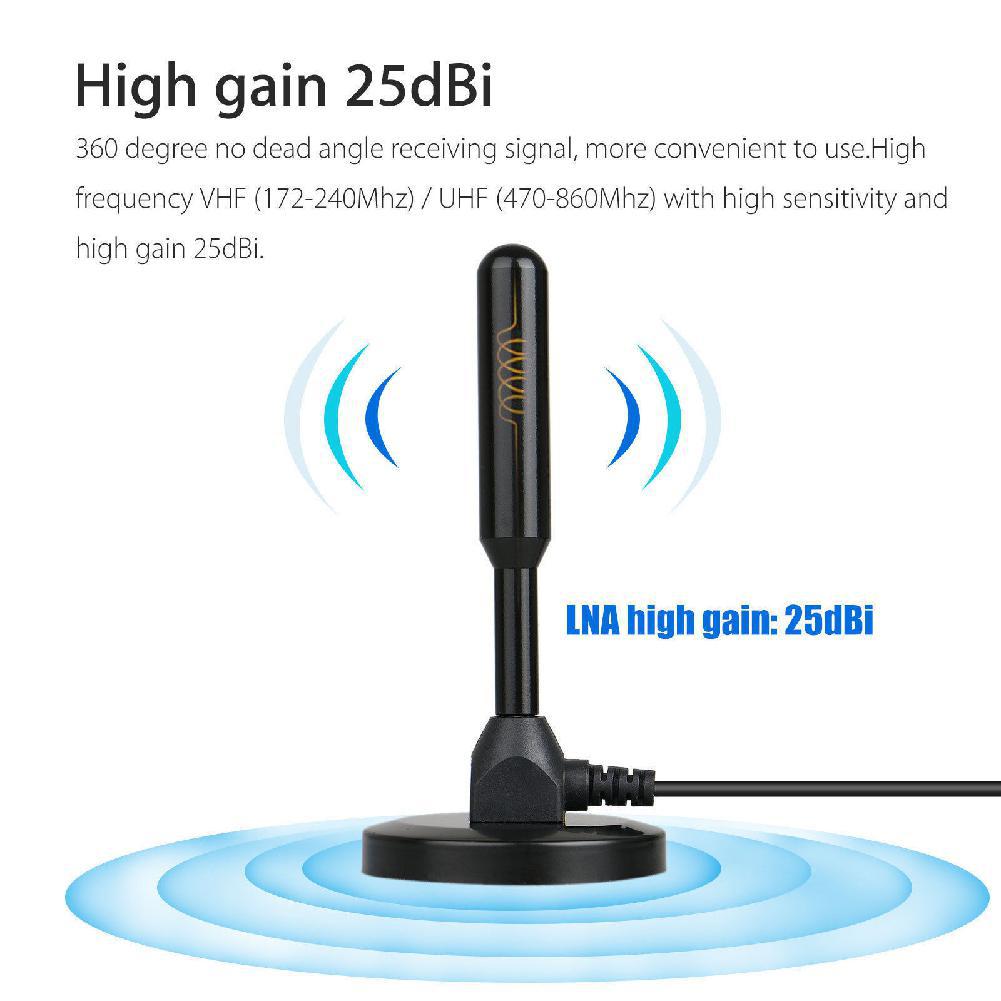

LNA high gain: 25dBi
Voltage: 5 v
How to use:
Step 1: Connect the end (f-male) of attached coaxial cable to the ANT / IN connector on the back of the TV or DVB-T tuner.
Step 2: In the TV’s setup menu, set the tuner mode to "Antenna" or "Air". for more detailed instructions, please consult your TV manual.
Step 3: In the TV’s setup menu, set TV to "scan" for channels. This can sometimes be referred to as auto program, auto scan, channel search or channel scan. Consult the TV manual for detailed instructions.
Step 4: If reception is sporadic, try moving the antenna to another location and rescanning the TV until optimal position is found.
Step 5: fix the antenna at the optimal position you found.
Package Includes:
1×200-mile Antenna
Note:
Color deviation may vary due to different monitor settings.
We will offer you the best product and service, if you have any problem, please let us know, and we will solve the problem ASAP. Thank you.
TYPE 2 ——Planar Antenna
European and American HDTV indoor TV antenna, appearance design elegant, thin, small size and other features, back with adhesive tear glue, easy to install, can do f head, the default shipment TV head
（ 1)Support 1080p
（2)50miles range
（3)Coaxial Cable: 3M length
（4)Connector Type:F – head with TV adapter
（5)V.S.W.R.:<=1.5,Max:1
（6)Impedance:75Ohm
（7) Multi-directional capability
（8)call out all "Free" channels
（9)Gain:20 dBi(with amplifier)
（10) Conventional antenna panels are divided into white, black, transparent, support for samples and drawings to order
（11)Working Frequency: 174~240MHz,470~862MHz
（12）Product size（MM）：210*120*0.8
（3)Coaxial Cable: 3M length
（4)Connector Type:F – head with TV adapter
（5)V.S.W.R.:<=1.5,Max:1
（6)Impedance:75Ohm
（7) Multi-directional capability
（8)call out all "Free" channels
（9)Gain:20 dBi(with amplifier)
（10) Conventional antenna panels are divided into white, black, transparent, support for samples and drawings to order
（11)Working Frequency: 174~240MHz,470~862MHz
（12）Product size（MM）：210*120*0.8
（13）Mounting Paste
（14）Radome Color Black
（15）. Operation Temperature : -45 ~ 85℃
（16）. Storage Temperature : -45 ~ 85℃
TYPE 3 ——MINI Antenna
Frequency：VHF174~230/UHF470~862MHZ
VSWR：≤1.5
Gain： 3dBi
Rated power：50W
Polarization：vertical
Input Impedcane ：50Ω
Connector Type： IEC/F/others
